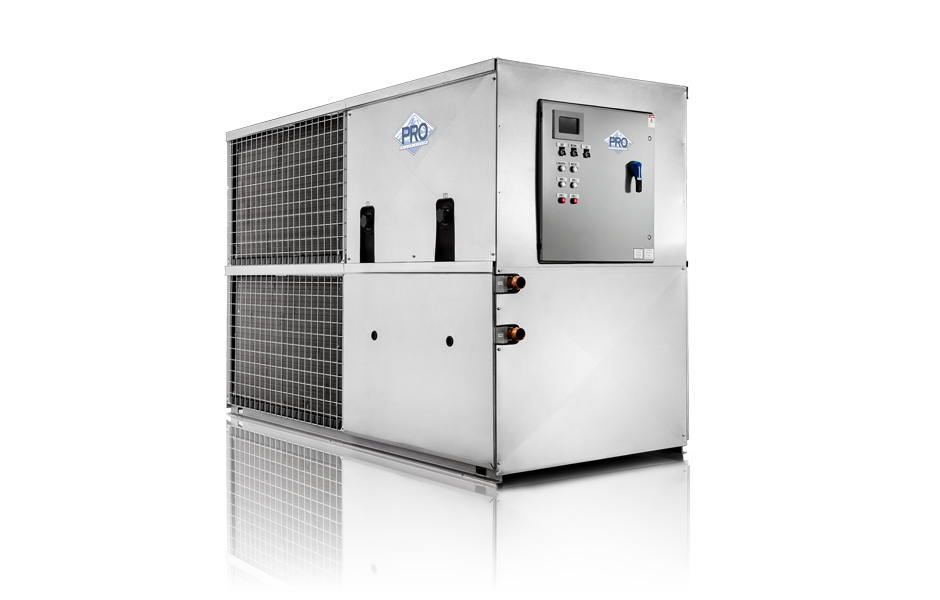

MA Series

  • Complete Size Range– The MA Series is offered in various sizes from 5 HP to 24 HP- in single and dual compressor configurations.
  • Spiral Drum Heat Exchanger– Each model is supplied standard with the proven Spiral Drum Heat Exchanger. Combining the highest efficiency with unmatched durability. The Spiral Drum Evaporator is supplied with a 5 year replacement warranty.
  • Stainless Steel Glycol Pumps– System supplied standard with an internal Chiller Evaporator Pump and a Dedicated Glycol Process Pump.
  • Insulated Glycol Storage Tank– System supplied standard with large insulated Glycol Storage Tank with easy fill access.
  • ETL Listed UL 508 Electrical Control Panel– Control panels supplied with all motor starters, system fusing, indicator light, and digital thermostat with glycol temperature display.

Packaged Air Cooled – MA Series 5 HP TO 24 HP

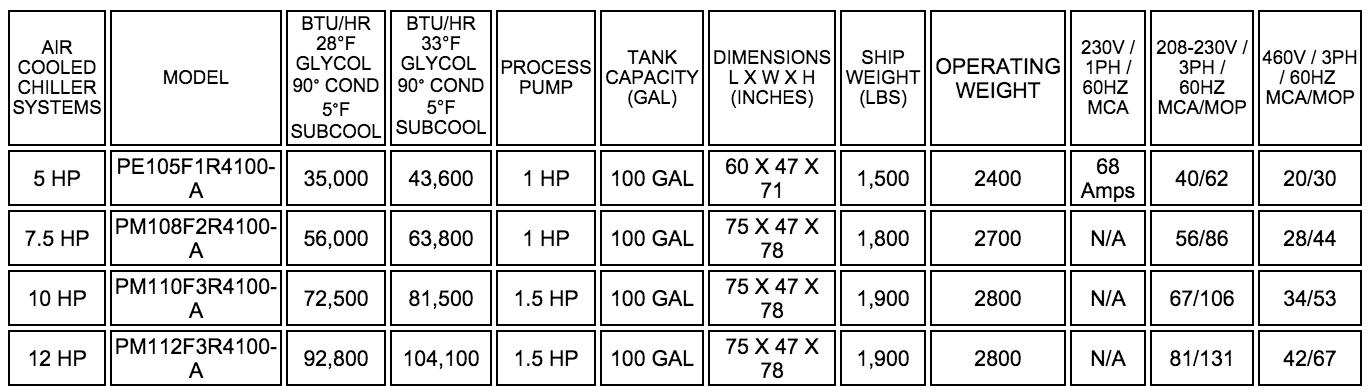

MA System Specs
