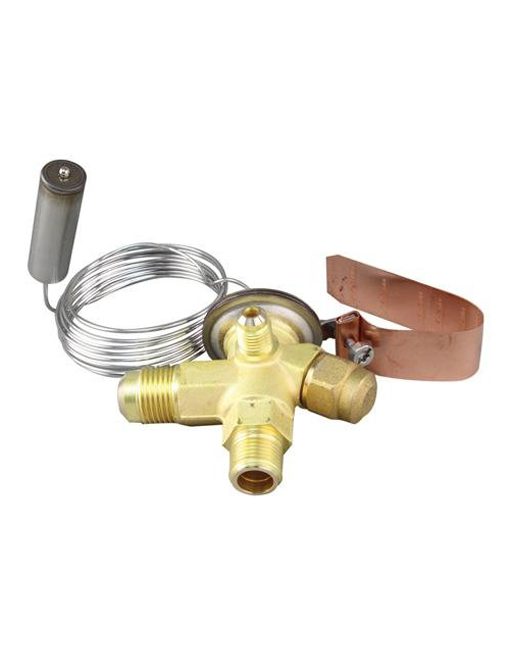

068Z3284 – Thermostatic Expansion Valve

Description

• Gross weight: 0.3 kg
• Body material: Brass
• Capillary tube length [in]: 59 in
• Capillary tube length [mm]: 1500 mm
• Category: Art. 4, par. 3
• Connection material: Brass/Copper
• Direction: Angleway
• Equalization connection type: SOLDER
• Equalization size [in]: 1/4 IN
• Flow direction: Bi-flow with orifice 01-05
• Flow direction indicator: Embossed 1-way arrow
• Fluid Group: II
• Inlet connection type: FLARE
• Inlet size [in]: 3/8 IN
• Max. Working Pressure [bar]: 34 bar
• Max. Working Pressure [psig]: 500 psig
• Outlet connection type: SOLDER
• Outlet size [in]: 1/2 IN
• Packing format: Multi pack
• Pressure equalization: Externally equalized
• Quantity per packing format: 20 pc
• Rated cap. cond. Range N [IMP]: OS=10.8 ºF
  tcond=100 ºF
  tevap=40 ºF
  tliq=98 ºF
• Rated cap. cond. Range N [SI]: OS=6K
  tcond=38 ºC
  tevap=4.4 ºC
  tliq=37 ºC
• Refrigerants: R22/R407C
• Serviceable: TXV spare parts
• Static Superheat (SS): [°C] 4 °C
• Static Superheat (SS): [°F] 7.2 °F
• Superheat setting: Adjustable
• Temperature range [°C]: [Max] 10 °C, [Min] -40 °C
• Temperature range [°F]: [Max] 50 °F, [Min] -40 °F
• Type: TE 2
