PROPlateHXTM

THE HEAT EXCHANGER THAT MADE INSTANT
COOLING THE NEW STANDARD

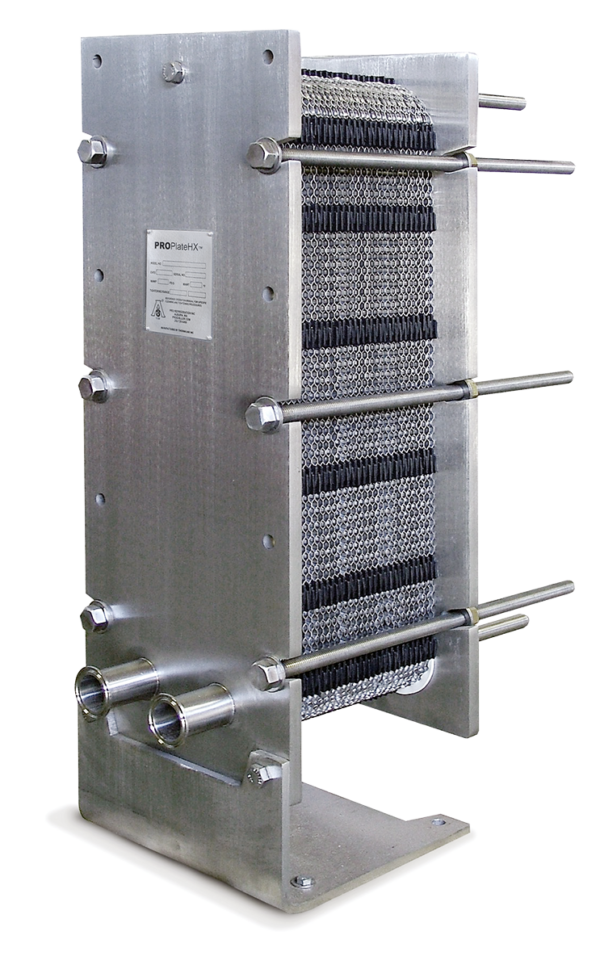

The PROPlateHX is a stainless steel, gasketed, plate and frame heat exchanger used to remove and add heat as the process requires.

PRO + THERMALINE

A PARTNERSHIP DEDICATED TO COOLING MILK

Blue rocket ship icon
THE PARTNERSHIP

In the early 1990’s, a group that included PRO Refrigeration, Thermaline, and Babson Brothers Company worked together to introduce a new concept that we called Instant Milk Cooling, which unquestionably changed the game of cooling milk.

At the time, there was essentially one way to cool raw milk, using a refrigerated bulk milk tank. Larger farms used well water to precool the milk, but at the center of every dairy farm’s cold chain was a refrigerated bulk tank.

As dairy production grew and standards tightened, conventional cooling methods simply could not get the job done.

Initially, Pro and Thermaline worked directly with some of the largest farms in the Pacific Northwest (farm names like Smith Bro’s, DeRuyter, and Krainick Farms). These farms had increased production and simply outgrown the capacity of their cooling systems. It was exciting testing, designing, and installing systems; there were never two built alike, but each was a step closer to a new way to cool milk, instantly.

Today Pro partners with a network of the highest skilled dairy builders and equipment dealers across North America. These dealers understand the challenges and expectations of today’s farmers better than anyone, and they play a key role in the development of our products.

Blue rocket ship icon
INSTANT COOLING

At the center of Instant Milk Cooling is a 2-Stage Thermaline Plate Heat Exchanger matched with a PROChiller System. The first chiller and plate cooler combination designed specifically to cool milk from 98°F down to 36°F as it is being transferred from the parlor to the milk house.

By adding a properly sized DAIRYPro Vat, the concept of Instant Milk Cooling has transitioned into the industry standard, and today applied to every new production dairy built in the United States.

In addition to producing higher quality milk, Instant Milk Cooling allows farmers to consolidate the refrigeration equipment to a central “chiller system”, reducing service and maintenance costs.

In some cases, farmers can eliminate their bulk tanks completely by transferring the instantly cooled milk directly into staged milk trucks, reducing additional installation, maintenance, sanitation expense.

Snowflake shaped icon

INSTANT COOLING IN 4 STEPS

1) Milk is transferred at 101°F from the milking parlor to the milk house

2) With a variable flow pump, the milk is transferred from the DAIRYPro Vat to the PROPlateHX

3) Using 2 stages of cooling, (1) well water and (2) chilled glycol, milk is instantly chilled down to 36°F

4) 36°F Milk is transferred to a bulk tank for storage, or directly onto an awaiting milk truck.

STANDARD PROPlateHXTM MODELS & OPTIONS

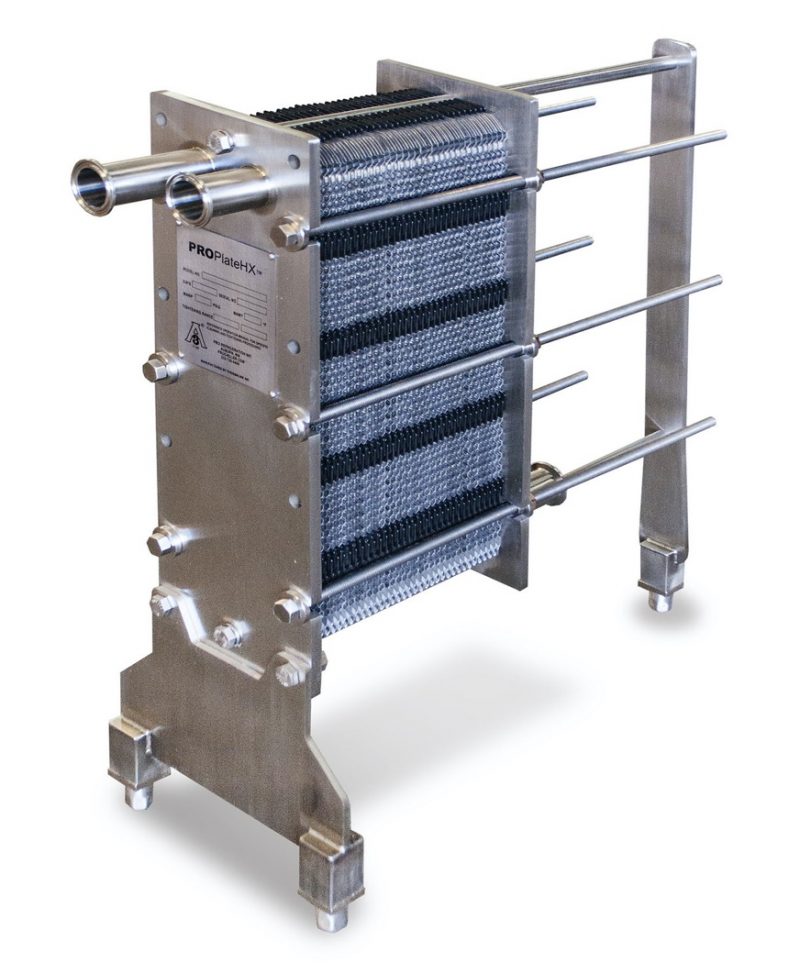

Single stage Pro Plate HX model.

Single Stage

Pre-coolers

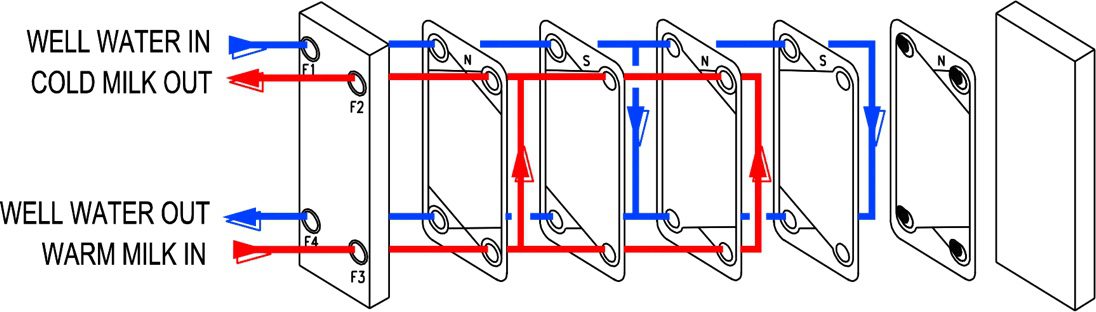

Diagram of Pro Plate HX single pass process.

SINGLE PASS

DUAL PASS

Click on a model number below to see product details.

Max Design Milk Flow 800 LB PER HR or 1.5 GPM or 5.6 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 58 F 73 F 78 F 70 F 83 F 78 F
Max Design Milk Flow 1000 LB PER HR or 1.9 GPM or 7.1 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 54 F 71 F 76 F 69 F 83 F 78 F
Max Design Milk Flow 1500 LB PER HR or 2.9 GPM or 10.9 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 48 F 64 F 80 F 66 F 78 F 75 F
Max Design Milk Flow 1800 LB PER HR or 3.4GPM or 12.8 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 47 F 67 F 80 F 66 F 85 F 75 F
Max Design Milk Flow 2200 LB PER HR or 4.2 GPM or 15.8 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 54 F 65 F 72 F 67 F 79 F 76 F
Max Design Milk Flow 2500 LB PER HR or 4.8 GPM or18.1 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 44 F 63 F 71 F 65 F 78 F 74 F
Max Design Milk Flow 2800 LB PER HR or 5.4 GPM or 20.4 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 42 F 79 F 72 F 67 F 79 F 76 F
Max Design Milk Flow 3100 LB PER HR or 6 GPM or 23 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 41 F 63 F 72 F 67 F 79 F 76 F
Max Design Milk Flow 3600 LB PER HR or 7 GPM or 26.4 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 41 F 63 F 70 F 67 F 78 F 75 F
Max Design Milk Flow 5000 LB PER HR or 9.7 GPM or 36.6 LPM
Milk In 98 F
Cooling Water Supply 35 F 50 F 60 F 60 F 70 F 70 F
Water Flow:Milk Flow 2:1 1:1 1:1 2:1 1:1 2:1
Milk Temp to Milk Tank 41 F 65 F 71 F 66 F 77 F 74 F
Pro Plate HX dual stage model.

Dual Stage

Click on a model number below to view model details.

Max Design Milk Flow 3000 LB PER HR or 5 GPM or 21 LPM
Max Design Milk Flow 3600 LB PER HR or 6 GPM or 26 LPM
Max Design Milk Flow 5000 LB PER HR or 9 GPM or 34 LPM
Max Design Milk Flow 4000 LB PER HR or 7 GPM or 25 LPM
Max Design Milk Flow 4500 LB PER HR or 8 GPM or 33 LPM
Max Design Milk Flow 5500 LB PER HR or 10 GPM or 40 LPM

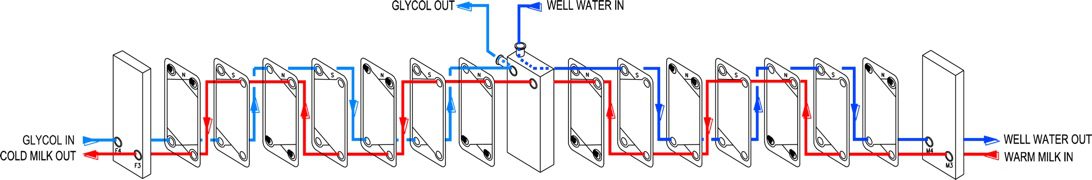

Pro Plate HX dual intermediate model.

Dual Intermediate

Click on a model number below to see product details.

Max Design Milk Flow 2000LB PER HR or 4 GPM or 15 LPM
Max Design Milk Flow 3000 LB PER HR or 6 GPM or 22 LPM
Max Design Milk Flow 4000 LB PER HR or 8 GPM or 29 LPM
Max Design Milk Flow 5000 LB PER HR or 10 GPM or 36 LPM
Max Design Milk Flow 13000 LB PER HR or 25 GPM or 94 LPM
Max Design Milk Flow 19000 LB PER HR or 36 GPM or 136 LPM
Max Design Milk Flow 20000 LB PER HR or 38 GPM or 143 LPM
Max Design Milk Flow 30000 LB PER HR or 58 GPM or 219 LPM
Max Design Milk Flow 40000 LB PER HR or 77 GPM or 291 LPM
