This industrial series is anchored by Semi-Hermetic Compressors driven by our microprocessor control providing remote web based monitoring and control as standard. Single and Dual refrigerant circuits offering redundancy and capacity control under varying load conditions.

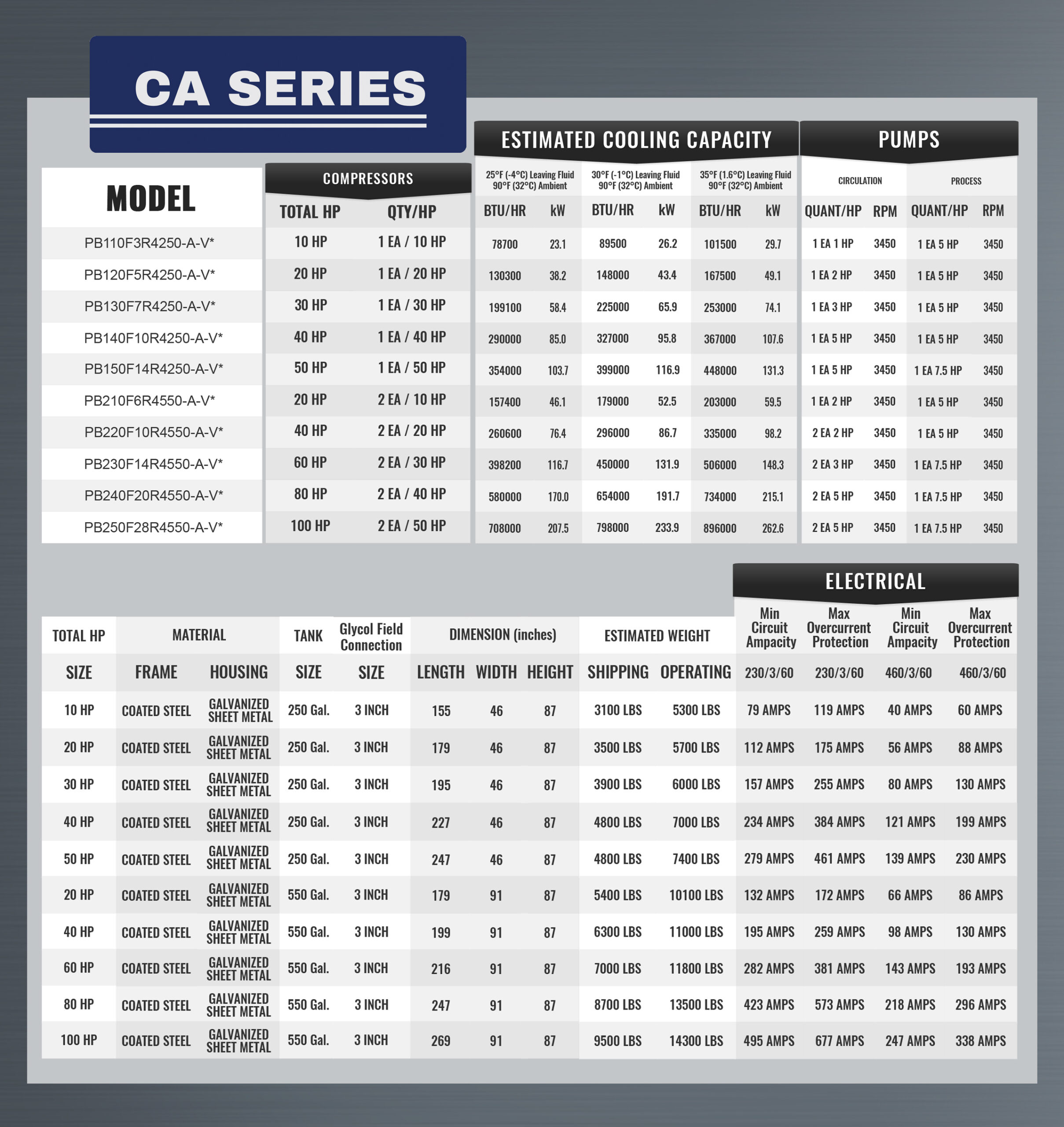

Capacity Range:

78,000 to 682,000 BTU/HR @ 28° F Fluid & 90° F Ambient
6.5 to 56.8 Refrigeration Tons @ 28° F Fluid & 90° F Ambient
10 to 100 Compressor Horsepower
250 to 2,000 gallon glycol tank

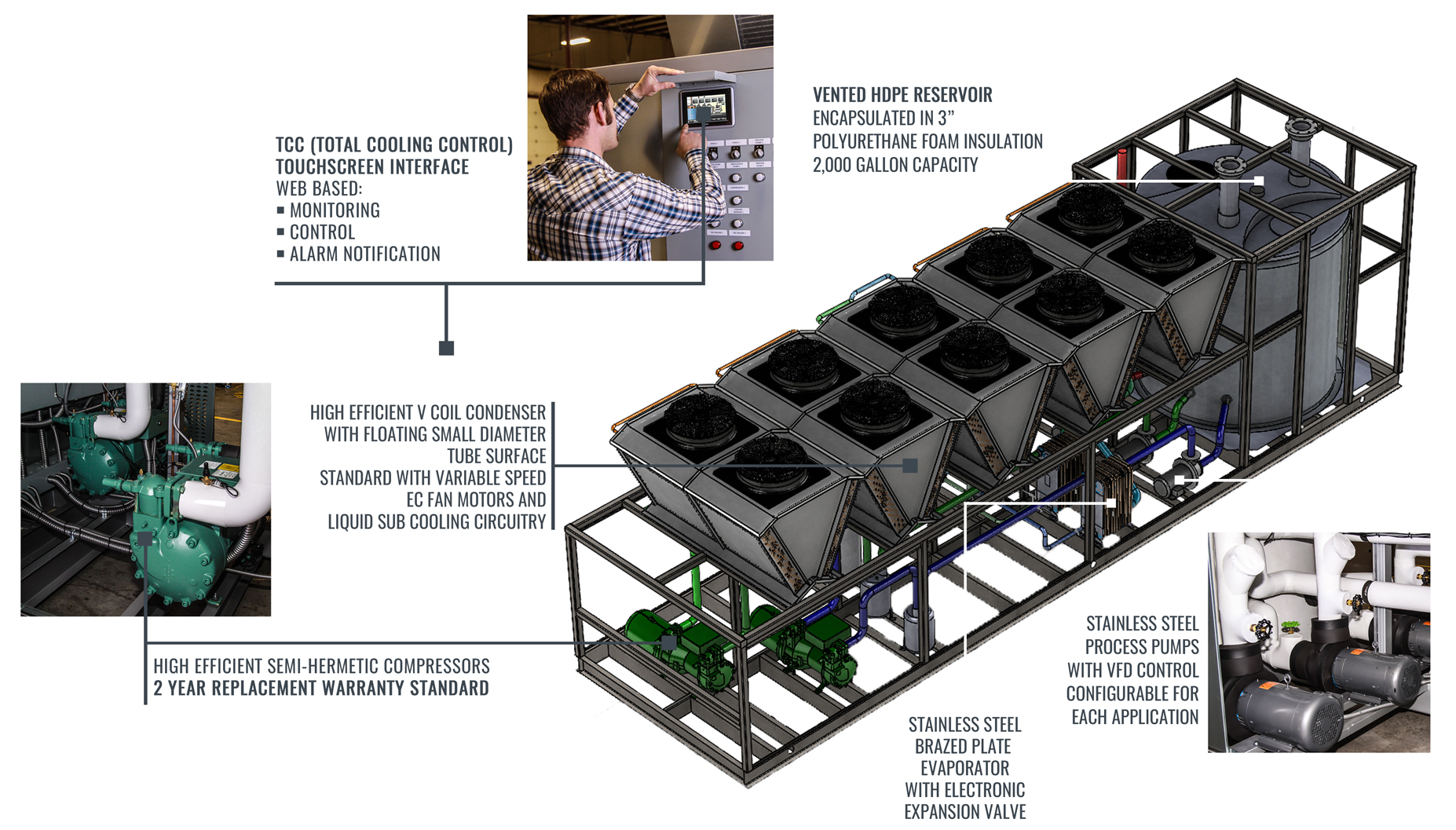

Designed for our largest customers this series includes all the Options as Standard features. We combined Screw Compressor technology with Stainless Steel Evaporators outfitted with Electronic Expansion Valves.  We’ve also incorporated ICE microtube V Series Air Cooled Condensers with high efficient EC fan motors with built in fan speed control to deliver the highest efficiencies with a reduced refrigerant charge. All of these components are driven by our microprocessor controller providing remote web based monitoring and control.

Capacity Range:

1,192,999 to 1,762 ,000  BTU/HR @ 30° F Fluid & 90° F Ambient
99.4 to 146.8 Refrigeration Tons @ 30° F Fluid & 90° F Ambient
180 to 220 Compressor Horsepower
2,000 gallon glycol tank

THE IDEAL SOLUTION FOR REPLACING OR ADDING CAPACITY TO AN EXISTING SYSTEM

Any of the above Series can be offered in our “Classic” configuration. We remove the glycol tank and process pump and set these up to field connected to any chiller system or existing storage tank.

Please speak with your Sales Engineer for a proposal from our Classic Series.
