ChilStar™ Series

  • Available in 4 sizes– 2HP (15,000 BTU/HR), 3HP (20,000 BTU/HR), 5HP (35,000 BTU/HR), 7.5HP (56,000 BTU/HR)
  • Spiral Drum Heat Exchanger– Each model is supplied standard with the proven Spiral Drum Heat Exchanger. Combining the highest efficiency with unmatched durability. The Spiral Drum Evaporator is supplied with a 5 year replacement warranty.
  • Stainless Steel Glycol Pumps– Chiller system supplied with single stainless steel glycol pump utilized for both circulation through the chiller evaporator and circulation to process loop.
  • Insulated Glycol Storage Tank– System supplied standard with 20 GAL insulated Glycol Storage Tank with easy fill access.
  • ETL Listed UL 508 Electrical Control Panel– Control panels supplied with all motor starters, system fusing, indicator light, and digital thermostat with glycol temperature display.
  • Optional Package for Mobility– Caster set and hose rack for mobile applications.
  • Factory Tested– Each unit is factory tested and shipped with a complete refrigerant charge.

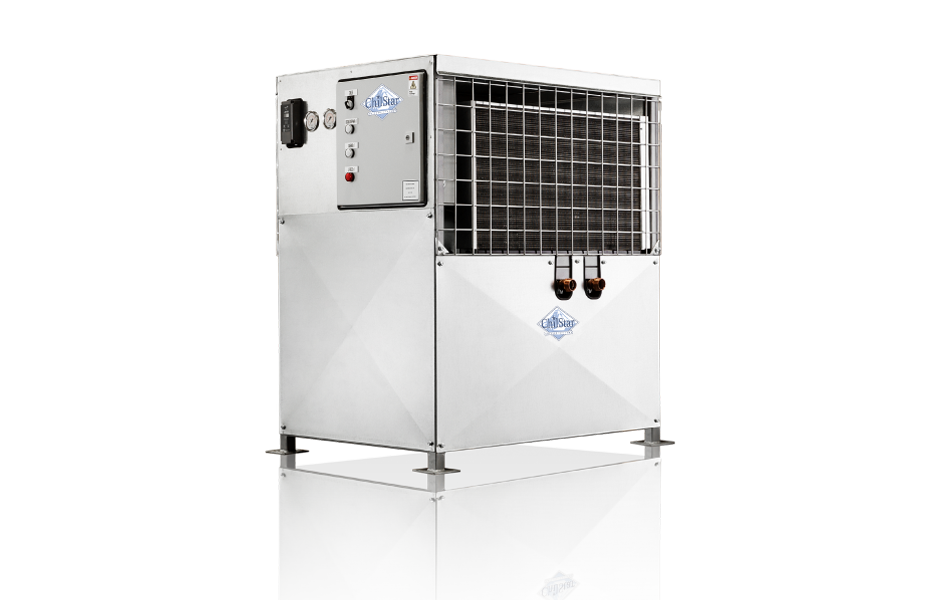

Packaged Air Cooled – ChilStar™ Series 2 HP TO 7.5 HP

ChilStar™ Specs

SUPPLIED WITH COPELAND COMPRESSORS™

SUPPLIED WITH MANEUROP COMPRESSORS™
